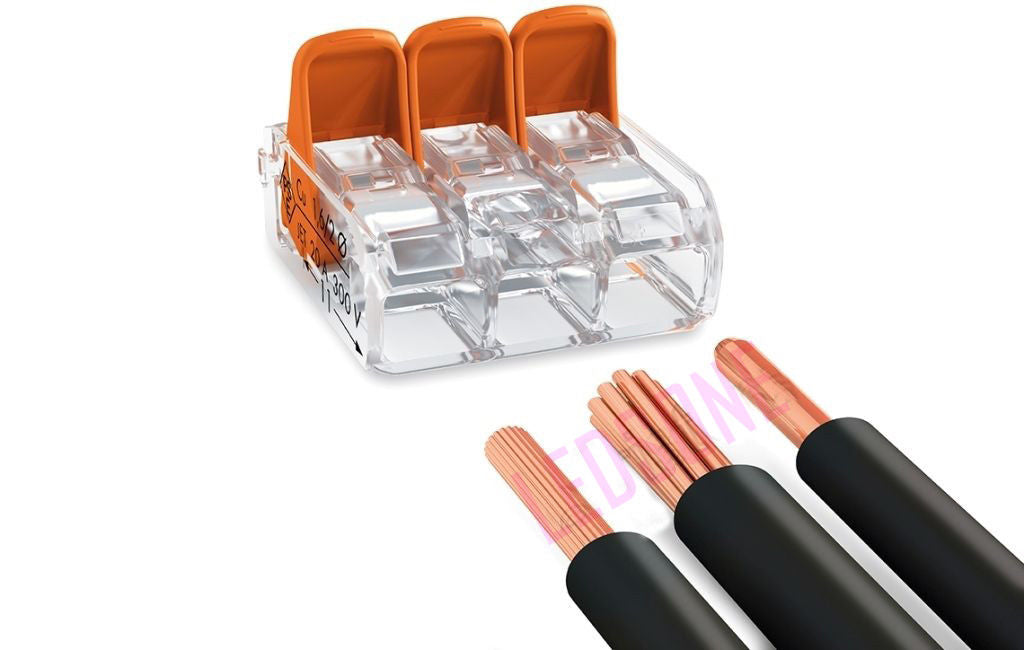

32A Spring Lever Push Fit Reusable 3 Way Wire Connectors~2028
Description
- Color: Clear and Orange
- 3 Way: 20 x 16 x 19 mm / 0.78″ x 0.63″ x 0.74″ (LxWxH)
- Max. Voltage: EN 400 V
- Current Intensity: EN 32 A
- Max. Isolation: 4 kV
- Max. Continuous Service Temperature: 85°C
- Strip Length: 9-10mm
Compact connector with levers
- Solid conductor size 0.08 to 2.5 mm² /AWG 14
- Stranded conductor size 0.08 to 2.5 mm² /AWG 14
- Flexible conductor size 0.08 to 4 mm² /AWG 28 – 12
Features
- Security – no loose wires, tape embrittlement danger, safe and transparent visible.
- Convenience – a test hole, measure the voltage without removing tape.
- Quick – direct plug, plug the wrong can be pulled out, followed again.
- Reliable – Each contact shrapnel independent, fit different wire diameter, safety shorting.
Package included :
- 3 WAY wire connector only.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
