2000W PA Speaker System with 14 Channel Mixer, 12″ Speakers & 15″ Subs
DETAILS
This is a complete system designed for bands, DJs, live events such as pub karaoke or live music, and other venues that require an all-in-one ready to go speaker system.
The package includes 2 x 15″ active subwoofers for deep, powerful bass and 2 x 12″ active speaker cabinets for clear, dynamic mid and high frequencies. Combined, they deliver exceptional sound coverage and clarity for any performance or event.
Paired with a 14-channel mixer, this kit allows for flexible and precise audio control, accommodating multiple inputs like microphones, instruments, and media devices. The 4 x included 12m XLR cables ensure you’re ready to set up and start playing right out of the box.
All the equipment is mains powered meaning no amp is required – simply plug them into a wall socket or extension.
The subwoofers and speakers also include a 35mm pole socket allowing you to mount the speakers on top of the subwoofers. Poles are available to purchase separately.
Included in the kit:
- 2 x 15″ Active Subwoofers
- 2 x 12″ Active PA Speakers
- 1 x 14-Channel Mixer with DSP
- 4 x 12m XLR Cables
- (OPTIONAL) 2 x 35mm Pole Mounts
15″ Active Subwoofer
Housed in a rugged wooden cabinet with durable carpet covering, these subs are built to withstand the rigors of frequent use while delivering exceptional low-end performance. This makes them ideal for a mobile DJ.
It features an adjustable low-pass filter (40–150Hz), allowing you to fine-tune the bass response for optimal performance in any venue.
Additional features include:
- Metal corner protectors for added durability.
- Side-mounted carrying handles for easy transport.
- An integral 35mm pole mount, perfect for pairing with mid/high-frequency speakers.
12″ Active PA Speaker
This 12″ active PA speaker combines professional sound performance with a lightweight and durable design, perfect for live events, public speaking, and music playback. The moulded ABS cabinet features a sleek, modern look with an integral carry handle for portability and a constant directivity horn for even sound dispersion.
The speaker delivers 200W RMS (400W max) power to produce high SPLs of up to 127dB, ensuring crystal-clear audio across its wide 45Hz–20kHz frequency range.
Key Features:
- Mic/line inputs with independent volume controls and tone adjustments.
- Portable design with an internal 35mm top hat for stand mounting.
- Premium Drivers:
- 38mm titanium compression HF driver for detailed highs.
- 300mm (12″) LF driver with a 52mm coil for punchy bass.

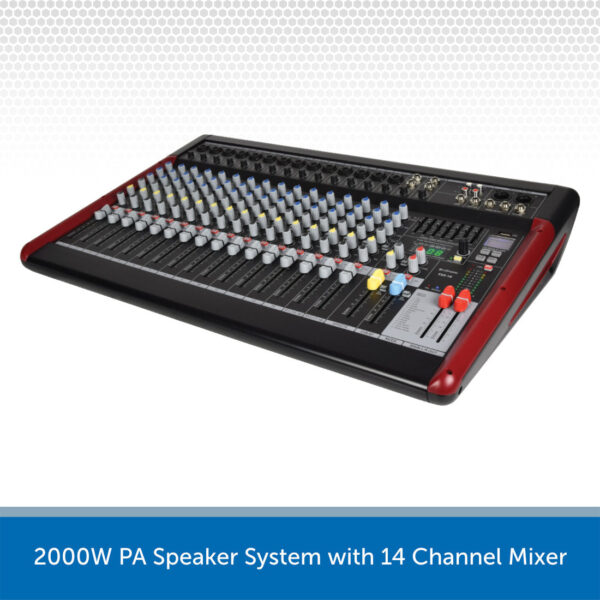

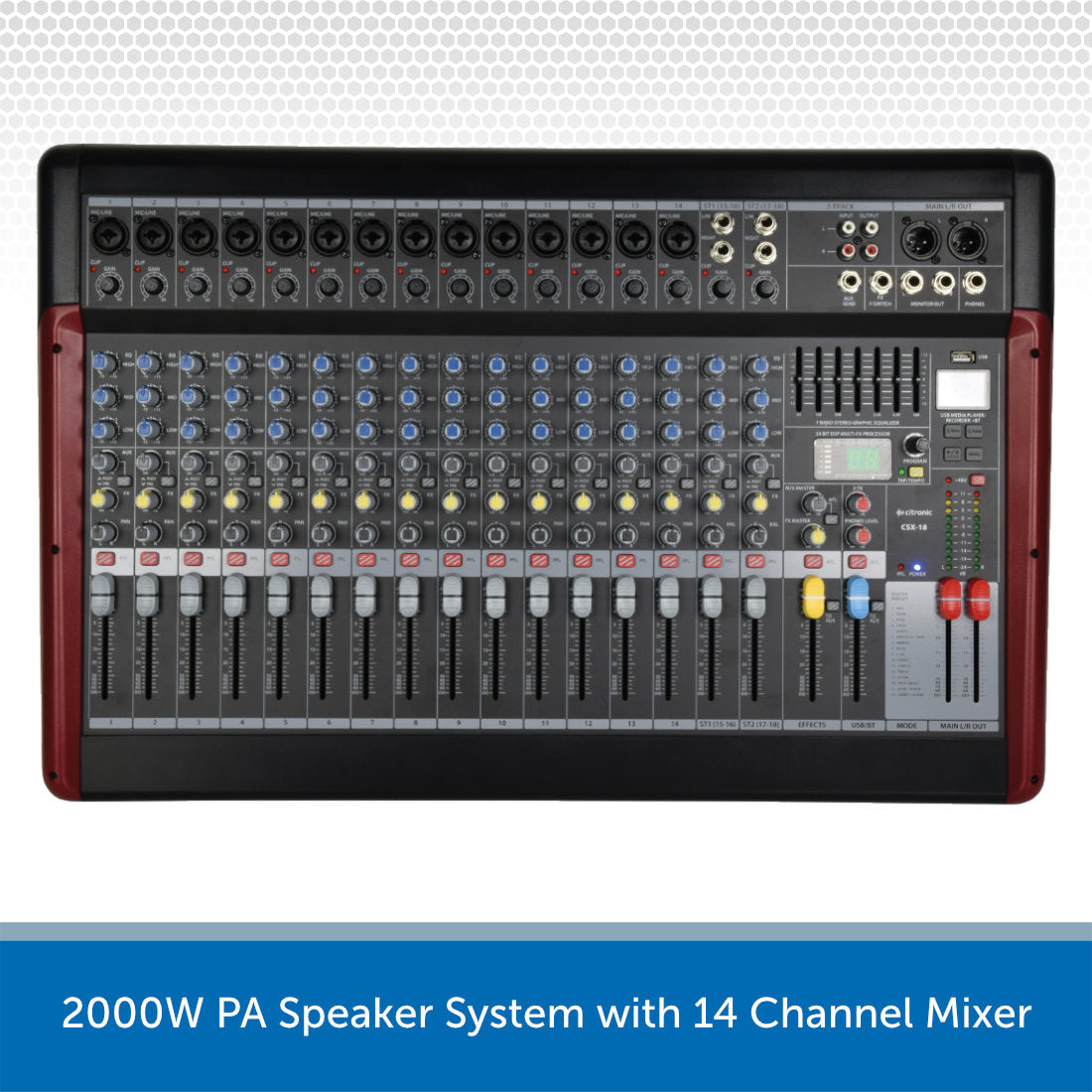

14 Channel Mixer with DSP
This fully featured live mixing console is designed for professional audio mixing in live performances, conferences, and theater productions. With 14 mono mic/line inputs and 2 stereo line inputs, it offers versatile connectivity for microphones, instruments, and playback devices, while maintaining a low-noise and clean audio path.
Key features include:
- Built-in 24-bit DSP Effects Processor: 16 programs with independent level control and AFL monitoring for creating polished mixes.
- Integrated USB Media Player/Recorder: Supports playback from USB memory sticks and can record the mix output, perfect for rehearsals and performances.
- Bluetooth 5.0 Compatibility: Pair with smartphones or tablets for seamless audio playback.
- 7-Band Graphic EQ: Global tone shaping for the overall mix.
- +48V Switchable Phantom Power: Powers condenser microphones and active DI boxes on all XLR inputs.
Channel Features:
Each channel is equipped with:
- Gain Control and 3-Band EQ (High: 12kHz, Mid: 2.5kHz, Low: 80Hz) for precise tonal adjustments.
- Switchable Pre/Post Aux Output and FX Send for external processing or monitoring.
- Pan, PFL Switch, and 60mm Channel Faders for intuitive mixing.
SPECS & DOWNLOADS
15″ Subwoofer (170.751)
- Power Handling (Max): 600W
- Power RMS: 150W
- Driver: 380mm (15”)
- Power Supply: 230Vac, 50Hz (IEC)
- Cut-off Frequency: 40–150Hz
- Weight: 22kg
- Dimensions: 640 x 555 x 440mm
12″ PA Speaker (178.755)
- Crossover Frequency: 3.5kHz
- Max SPL: 127dB
- SPL @ 1W/1m: 101dB
- Frequency Response: 45Hz–20kHz
- Power Handling: 400W max, 200W RMS
- Inputs: Mic (combo), Line (RCA)
- Power Supply: 230Vac, 50Hz (IEC)
- Signal-to-Noise Ratio (SNR): 87dB
- Total Harmonic Distortion (THD): 0.1%
- Dispersion: 90° x 60° (H x V)
- Weight: 13.2kg
- Dimensions: 345 x 565 x 320mm
14 Channel Mixer (170.885)
- Power Supply: 100-240Vac, 50/60Hz (IEC)
- DSP Effects Processor: 24-bit sigma-delta, 64/128 times over-sampling, 40kHz
- Output Connections: Main L+R balanced XLR, Monitor L+R 6.3mm jack
- THD +N: <0.01% (Channel to mix out)
- Power Consumption (Max): 30W
- Fuse: T3AL @ 230V / T6AL @ 115V
- Input Level: +24dBu (mic/line), +20dBu (stereo line) max.
- Phantom Power: +48V globally switched to XLR inputs
-
EQ (Channel):
- High: 12kHz ±15dB (shelving)
- Mid: 2.5kHz ±15dB (band pass)
- Low: 80Hz ±15dB (shelving)
- EQ (Master Bands): 63Hz, 160Hz, 500Hz, 1kHz, 2.5kHz, 6.3kHz, 16kHz
- 2-Track Input/Output: L+R RCA, 4k Ohm, -2dBu
- Bluetooth Version: 5.0
- Output Level: +26dBu (XLR), +20dBu (TRS jack) max.
- Output (Master): XLR balanced, ＜75 Ohm, +4dBu, Max. +22dBu
- REC Output: L+R RCA, <75 Ohm, -2dBu
- Headphone Impedance: 30-600 Ohms
- Frequency Response: 20Hz – 30kHz (-0.5dB)
- Channel Crosstalk: >82dB
- CMRR: >75dB (Mic @ 1kHz)
-
Noise RMS (22Hz-22kHz):
- EIN: -122dBu
- Residual Output: ＜-90dBu
- Main/Aux Mix: ＜-82dBu
- Dimensions: 622 x 402 x 108mm
- Weight: 6.3kg
